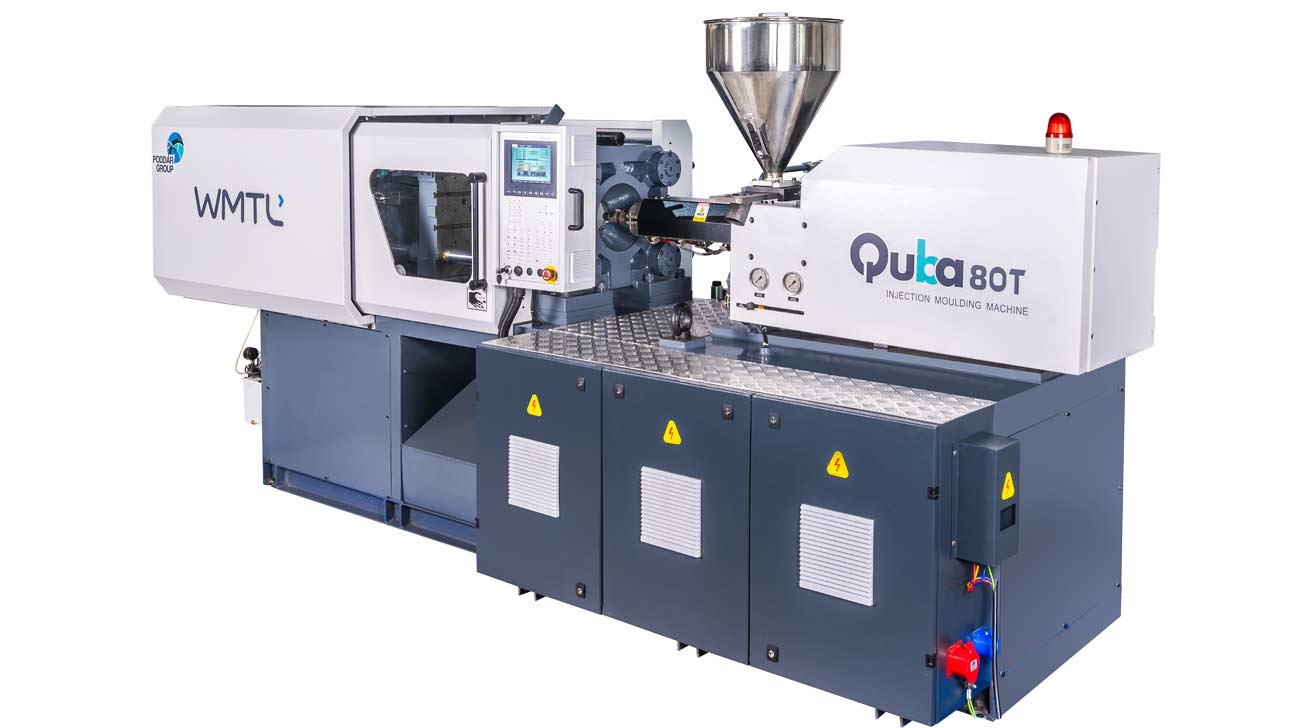

Q Series

Toggle Injection Moulding Machines

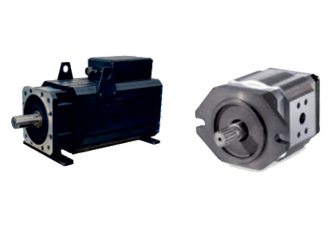

  • High Speed respond servo motor with Internal Gear Pump.
  • Electric Roller Bearing Guide for Moving Platen support.
  • Twin Cylinder injection unit for uniform load distribution.
  • Self-Optimizing Accurate Temperature Control.
  • Fast and Accurate Response Hydraulic System./li>
  • Multi Stroke Precise Ejector System.

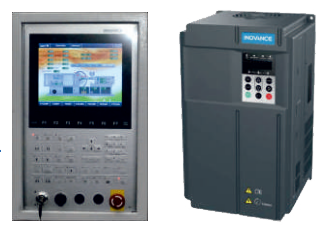

  • Intelligent HMI controller makes operator friendly machine with 1O" TFT Color Display.
  • Machine range vary from 80T to 350T clamping force & weight capacity from 94 gm to 1382 gm.
  • Premium class casting grades for better machine's longevity.
  • Robust and Rugged five-point double toggle mechanism.
  • Wide platens design with higher mold carrying capacity
STANDARD FEATURES
  • Servo Motor Controlled with gear pump, high precision hydraulic system.
  • Ergonomically designed machine covers for safety, with elegant aesthetics.
  • Stress-relieved, strong & compact machine base frame.
  • Highly reliable electrical & electronic components from reputed manufacturers.
  • Hydraulic oil level gauge.
  • Heat exchanger for hydraulic oil cooling.
  • 5-in I 5-out Ball valve type cooling water arrangement.
  • Flexible machine supports with Anti-vibration pads.
TECHNICAL SPECIFICATION
Description Unit
Injection Unit
Screw Diameter mm
Shot Size (Theoretical) Cm3
Shot Size (Theoretical) Cm3
Injection Weight (PS) Cm3
Injection Rate (PS) Gm/s
Injection Pressure Bar
Injection Screw Stroke mm
Plasticizing Rate gm/s
Screw Speed rpm
Q-80T/277
A B C
30 35 40
21 21 21
105 143 185
94 137 179
47 64 84
2640 1939 1485
150 150 150
10 13.8 19
200 166 166
Quba - 110T/295
A B C
35 40 45
21 21 21
143 187 236
137 179 227
83 109 138
2060 1577 1246
150 150 150
13.8 19 25
200 200 171
clamping unit
Clamp Tonnage T
Toggle Stroke mm
Space Between tie bars mm
Max. mold height mm
Min. mold height mm
Ejector Stroke mm
Ejector Force T
Platen Size mm
Q-80T/277
  • 80
  • 280
  • 360x270
  • 350
  • 180
  • 75
  • 5.3
  • 530*470
Quba - 110T/295
  • 110
  • 320
  • 410x300
  • 400
  • 180
  • 100
  • 4
  • 610x530
others
Max. Pump Pressure Mpa
Pump Motor Power Kw
Heater Power kw
Machine Dimension L*W*H
Machine Weight Ton
Hopper Capacity Kg
Oil Tank Capacity Ltrs
Q-80T/277
  • 16
  • 12
  • 8.8
  • 3.8x1.2x1.7
  • 3
  • 25
  • 180
Quba - 110T/295
  • 16
  • 12
  • 12.5
  • 4.0x1.2x1.7
  • 4
  • 25
  • 250

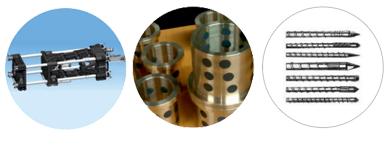

SCOPE OF SUPPLY
  • Clamping Unit
  • Injection Unit
  • Ejector
  • Temperature Control
  • Intelligent Controller With HMI
  • Hydraulics Unit
Quba - 130 T/490
A B C
40 45 50
21 21 21
243 308 380
233 295 365
105 134 167
2015 1590 1289
195 195 195
18 24 34.5
280 225 210
Quba - 160 / 877
A B C
45 50 55
21 21 21
410 494 613
394 477 588
114 141 171
2190 1776 1465
260 260 260
23 34 48
225 200 166
Quba - 220/1178
A B C
50 55 60
21 21 21
525 637 758
505 573 682/td>
210 245 290
1900 1850 1554
270 270 270
50 66 75
225 225 225
Quba - 260T/1366
A B C
60 65 70
21 21 21
814 792 850
732 700 820
226 301 380
2053 1725 1470
290 290 290
75 90 105
200 200 200
Quba - 350T/2165
A B C
65 70 75
21 21 21
1150 1203 1535
1035 1137 1382
228 265 304
2100 1800 1500
350 350 2350
189 221 253
180 180 180
Q-80T/277
  • 130
  • 350
  • 430X410
  • 450
  • 180
  • 100
  • 4.5
  • 640X640
Q-80T/277
  • 160
  • 400
  • 510X410
  • 500
  • 200
  • 145
  • 4.5
  • 740X650
Q-80T/277
  • 220
  • 500
  • 560x560
  • 500
  • 230
  • 160
  • 6
  • 820X820
Q-80T/277
  • 260
  • 550
  • 610X610
  • 600
  • 250
  • 180
  • 6
  • 890X890
Quba - 110T/295
  • 350
  • 650
  • 710x710
  • 700
  • 320
  • 180
  • 8
  • 1020X1020
Q-80T/277
  • 16
  • 18
  • 12.5
  • 4.2X1.2X1.7
  • 4.2
  • 25
  • 300
Q-80T/277
  • 16
  • 18
  • 15
  • 5.12X1.2X2.01
  • 6
  • 50
  • 450
Q-80T/277
  • 16
  • 12
  • 8.8
  • 3.8x1.2x1.7
  • 3
  • 25
  • 180
Q-80T/277
  • 16
  • 28
  • 18.8
  • 5.84X1.36X2.22
  • 9.5
  • 50
  • 450
Quba - 110T/295
  • 16
  • 37
  • 24.8
  • 7.06X1.53X28
  • 15.5
  • 100
  • 550
OPTIONAL FEATURES
  • Double Hydraulic core pull.
  • Air ejection.
  • Robotic arm interface.
  • Ejector / Core on Fly
  • Photocell part drop detection for single cavity.
  • Insulated energy saving heater bands.
  • Water battery with temperature indicator.
  • Bi-metallic screw and barrel.
  • Single Phase CVT - 15 Amp for controller.



In line with Government's vision, Wolf aims to become the largest manufacturer of Injection Moulding Machines in India by offering best solutions at affordable price.
